| Technical Specifications | |||
| Model No. | 18K | ||
| Type | cooling only | ||
| Power supply | 1Ph-220-240V~50Hz | ||
| Voltage Range | V | 198~242 | |
| Refrigerant | kg | R410A | |
| Rated capacity | Btu/h | 18000 | |
| Rated capacity | W | 5275 | |
| EER | Btu/h/W; | 10.78 | |
| EER | W/W | 3.16 | |
| Rated power input | W | 1670 | |
| Rated current | A | 7.7 | |
| Max power input | W | 2350 | |
| Max current | A | 11.9 | |
| Indoor air volume(Cooling/Heating) | m3/h | 750 | |
| Annual energy consumption | kwh/year | NA | |
| Pressure | High(DP) | MPa | 4.5 |
| Low(SP) | MPa | 1.9 | |
| Indoor noise level at cooling | High | dB(A) | 44 |
| Outdoor noise level | dB(A) | 51 | |

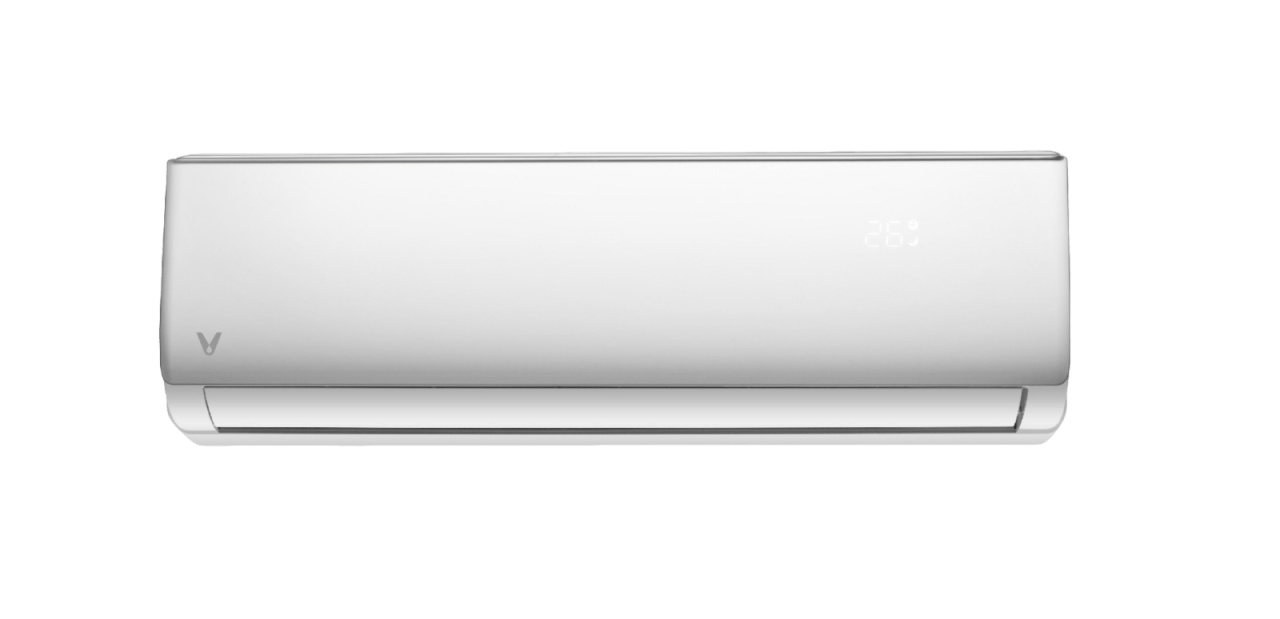

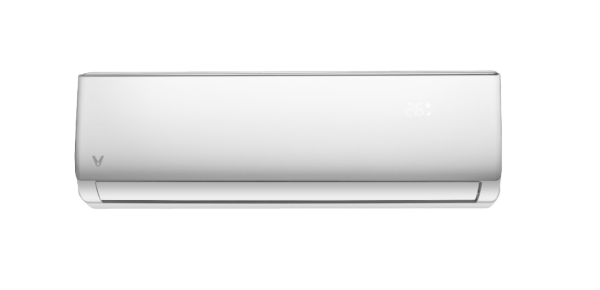

| Net dimensions (W x Dx H) | Indoor | 910×294×206 | |

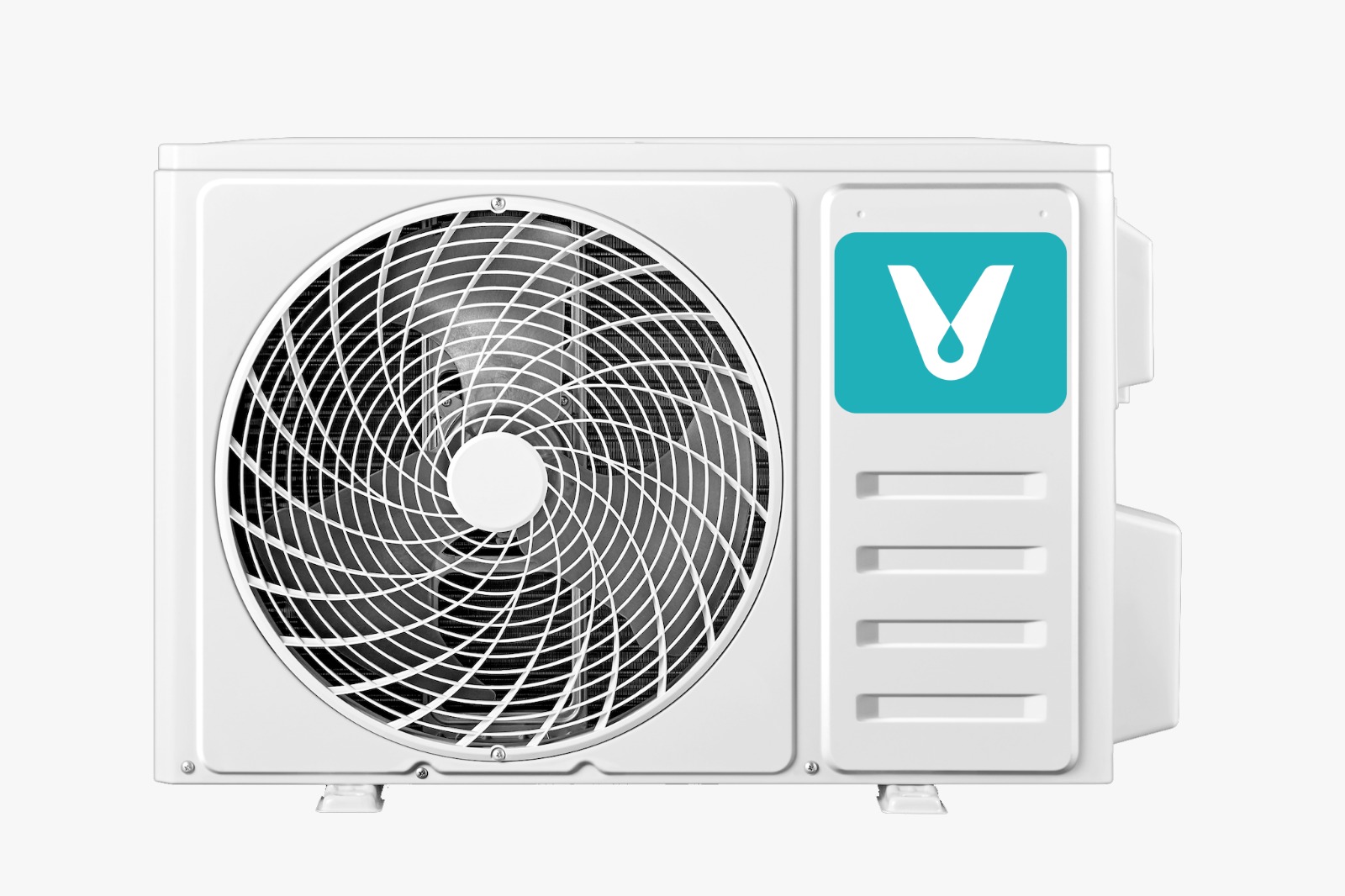

| Outdoor | 795×305×549 | ||
| Packing dimensions (W x D x H) | Indoor | 979×372×277 | |
| Outdoor （without piping） | 835×328×575 | ||
| Outdoor （with piping） | 835×340×585 | ||
| Net weight | Indoor | Kg | 10 |
| Outdoor | Kg | 30 | |
| Gross weight | Indoor | Kg | 13 |
| Outdoor （without piping） | Kg | 32 | |
| Outdoor （with piping） | Kg | 33 | |
| Moisture removal | Liters/h | 1.8 | |
| Type | Rotary | ||
| Expansion device | Capillary tube | ||
| Defrosting system | Microcomputer controlled reverse system | ||
| Indoor fan type | Cross flow | ||
| Outdoor fan type | Propeller | ||
| Connecting Wiring | Size x Core number | 3×1.5 | |
| DraiN.Age Pipe | O.D 16mm | ||
| Suitable area | m2 | 20~35 | |
